RX18D8 N-Ch 40V Fast Switching MOSFET
發(fā)布日期:2025-02-26
點擊次數(shù):225
RX18D8 N-Ch 40V Fast Switching MOSFET
☆ Super Low Gate Charge
☆ 100% EAS Guaranteed
☆ Green Device Available
☆ Excellent CdV/dt effect decline
☆ Advanced high cell density
Trench technology
RX18D8 Description
The RX18D8 is the high cell density trenched Nch MOSFETs, which provide excellent RDSON
and gate charge for most of the synchronous buck
converter applications.
The RX18D8 meet the RoHS and Green Product
requirement, 100% EAS guaranteed with full
function reliability approved.

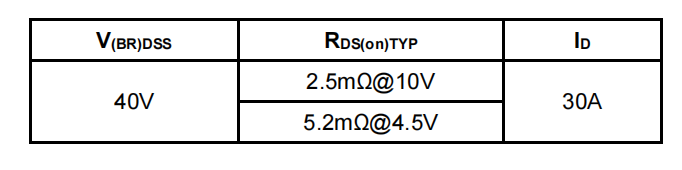

RX18D8 Product Summary

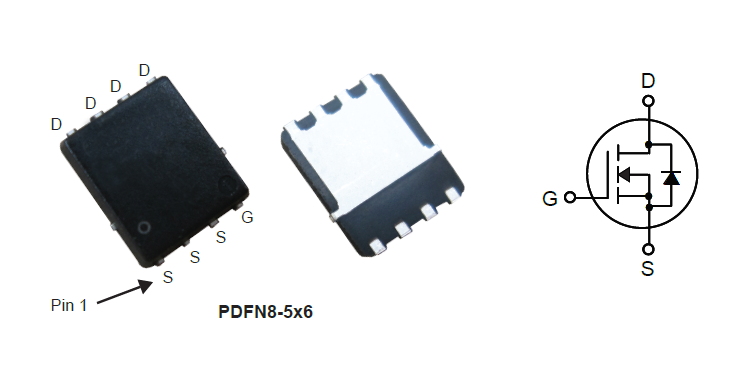

RX18D8 PDFN8-5x6 Pin Configuration

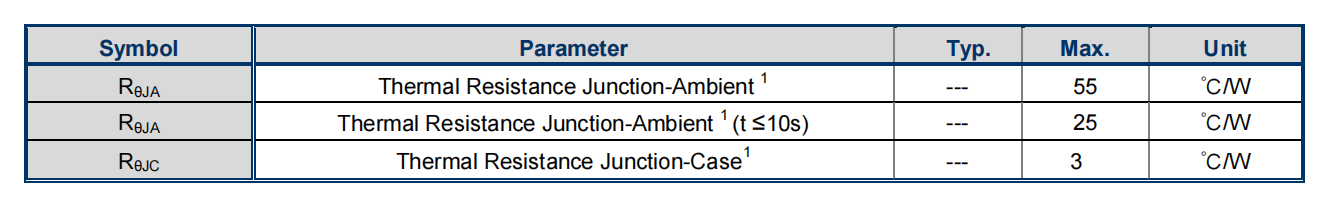

RX18D8 Absolute Maximum Ratings
